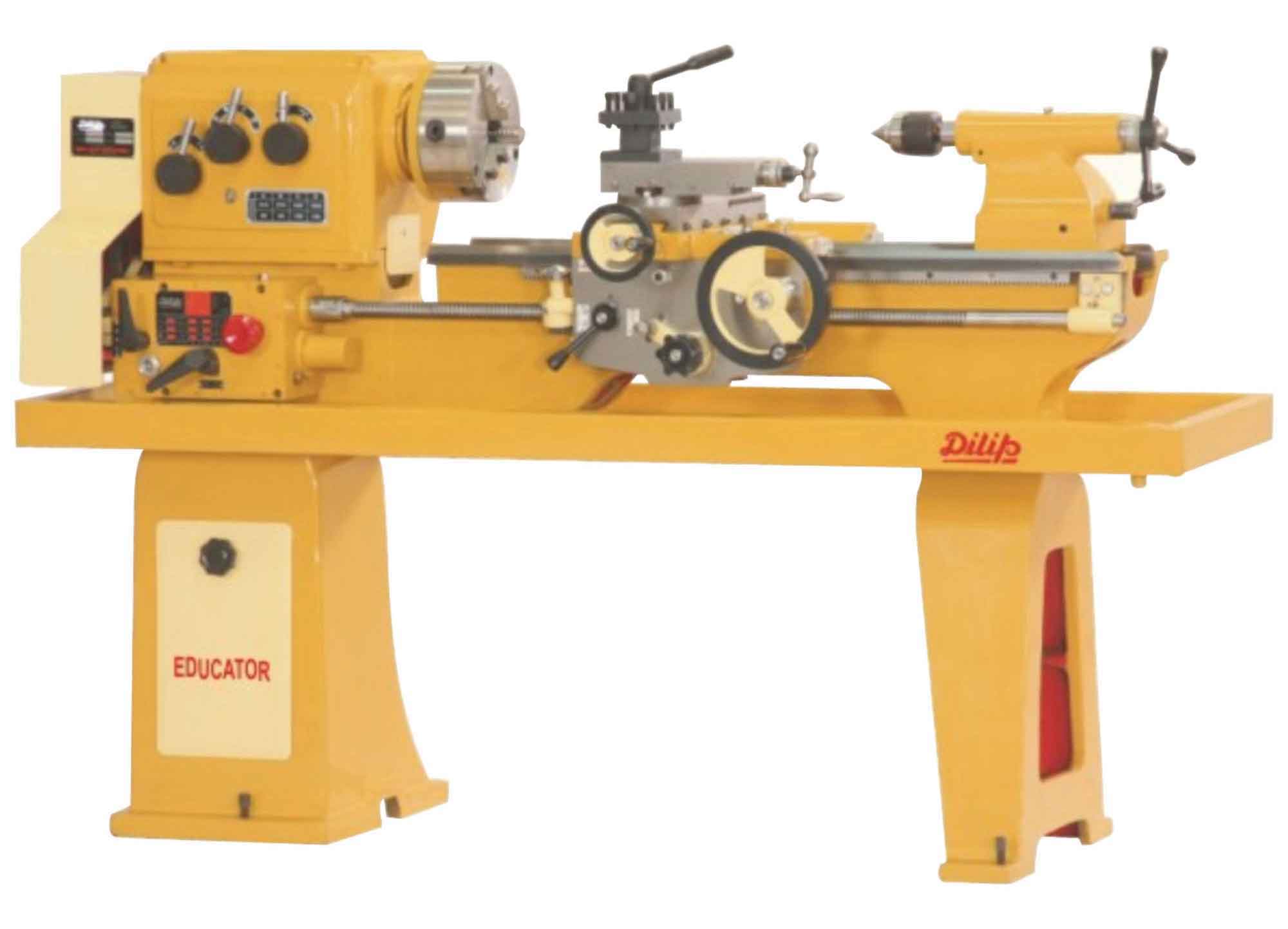

All Geared Precision Lathe Machine - DGH Series
  • Electricals
  • Flame hardened bed
  • Norton back plate
  • Spindle sleeve
  • Dead centers
  • Tool post key
  • Spare parts & Instruction book
  • Hardened & profile ground Gears & Spline shafts for long-life & noise-less operation.
  • Hardened & ground bed ways for long life.
  • Easy Speed selection & Gear Changing.
  • Norton Gear Box for multiple thread.
  • Hardened Spindle mounted over proven make Taper roller bearings.
  • All spare parts completely interchangeable & easy available
  • Tested as per IS-1878
  • Steady rest
  • Follow rest
  • Face plate
  • Rear tool post
  • Quick change tool post
  • Milling Attachment
  • Dog & True chuck
  • Coolant pump with tank & Adjustable Nozzle
  • Taper turning attachment
  • Machine lamp
  • Splash guard
  • 3 way indexing carriage stopper

Optional Accessories

FACE PLATE

Face Plate

CAPACITY DGH-1 DGH-2 DGH-3
Height of Centre 165 mm 165 mm 165 mm
Swing over saddle 190 mm 190 mm 190 mm
Swing over bed 320 mm 320 mm 320 mm
Admit between centre 680 mm 950 mm 1100 mm
Length of bed 1370 mm 1660 mm 1800 mm
Width of bed 225 mm 225 mm 225 mm
HEAD STOCK
Hole through the spindle 40 mm
Taper bore in spindle MT – 5
Spindle type & size (THREADED TYPE) 60 mm x 8 TPI
Spindle speeds 8
Range of spindle speeds 45 to 1000 rpm
TAIL STOCK
Taper bore in sleeve MT – 3
Quill travel 115 mm
Quill diameter 38 mm
Compound slide swivel angle 45 - 0 – 45
Compound slide travel 115 mm
Tool shank capacity 20 mm
Metric threads M 0.5 to 7.5
Inches threads 4 TPI to 60 TPI
Diameter 25.4 mm
Threads 4 TPI
DRIVE & ELECTRICAL
Motor 1 H. P. - 1440 rpm
V-Belt (for motor) A - 33
WEIGHT & DIMENSION
Net weight of machine (Approx.) 465 KGS. 495 KGS. 515 KGS.
Floor space required 1550 x 700 mm 1840 x 700 mm 1980 x 700 mm
Wooden case dimensions (Approx.) 1700 x 800 x 1575 mm 1950 x 800 x 1575 mm 2090 x 800 x 1575 mm

All dimensions are mm & approximate only.
