- Flame Hardened & Ground Bed
- Chuck Plate
- Change Gear Set (Inch & MM)
- 2 Dead Centers
- Centre Adaptor
- Tool Post Key
- Nylon Belt / V-Belt Set
- Motor Pulley
- Steady Rest
- Follow Rest
- Oil Can
- Spare Parts & Instruction Manual
- Head Stock Gear Helical
- Main Spindle & Tailstock Spindle hardened & ground
- Head Stock / Counter pulley dynamically balanced
- Hardened and Ground Bed for minimum wear
- Apron is fully oil bath
- Steel parts made from EN-8 steel
- Needs minimum care and low maintenance
- Tested as Per IS: 1878 - 1971
- All components machined using jigs and fixtures to close to tolerances, thus providing easy interchangeability
- Norton Gear Box (Inch & MM)
- Norton Gear Box with Feed Shaft
- Rear Tool Post with Long Slide
- Quick Change Tool Post
- Extra Spindle Bore Ø4" & Ø5"
- Extra Height of Centre
- Coolant Pump With Tank & Adjustable Nozzle
- Taper Turning Attachment
- Extra Chuck Plate
- Turcite - B Coating Slide Way
- True / Dog Chuck
- Reverse - Forward Switch
- V-Belt Set
- Electric Motor
| SPECIFICATION |

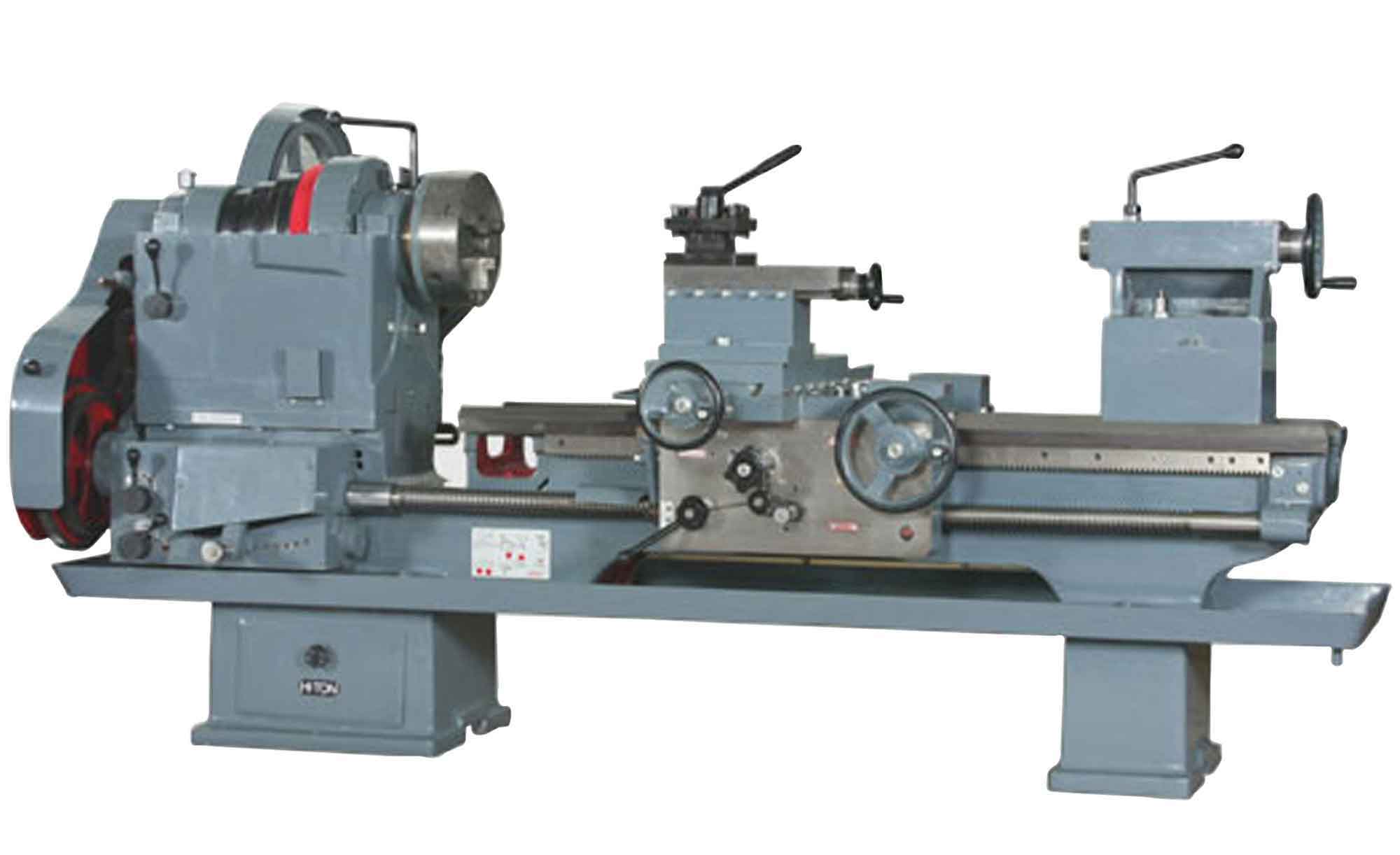

STANDARD EXTRA HEAVY DUTY 'EH' TYPE
380MM CENTRE |
| Height of Centre Over Flat Bed Ways |
380 mm |
| Swing Over Bed |
710 mm |
| Swing Over Cross Slide |
490 mm |
| Swing in Gap |
1150 mm |
| Length of Gap in Front of Face Plate |
190 mm |
| Width of Bed |
380 mm |
| Bed Type |
2V & 2 FLAT |
| HEAD STOCK OR MAIN SPINDLE |
| Spindle Nose Dia. / Thread |
104 x 6 TPI |
| Spindle Bore |
80 mm |
| No. of Spindle Speeds |
8 |
| Range of Spindle Speed |
|
| (Standard) Brass Type |
30 to 550 RPM |
| (Optional) Bearing Type |
40 to 700 RPM |
| Morse Taper in Spindle |
MT-6 |
| Morse Taper in Adaptor |
MT-4 |
| Type of Drive (Standard) |
Flat Belt |
| (Optional) V-Belt |
"C" Section |
| TAIL STOCK |
| Spindle Dia. |
62 mm |
| Spindle Morse Taper |
MT-4 |
| Spindle Travel |
180 mm |
| CARRIAGE & COMPOUND |
| Cross Slide Dimensions |
250 x 460 mm |
| Cross Slide Travel |
380 mm |
| Top Slide (Compound Slide) Travel |
170 mm |
| Tool Shank Section |
25 mm |
| LEAD SCREW |
| Lead Screw Diameter |
45 mm |
| Lead Screw Threads |
4 TPI |
| THREADS |
| Number of Threads Range in Metric |
13 |
| Number of Threads Range in Inch |
19 |
| Number of Pitch Range in Metric |
1 to 6 PITCH |
| Number of Pitch Range in Inch |
2 to 24 TPI |
| Electrical |
5 HP 1440 RPM |
| V-Belt Section |
B73 |
MISCELLANEOUS DIMESIONS
| MODEL |
FLOOR SPACE
OCCUPIED |
APPROX WT.(KG) GROSS |
ADMIT BETWEENCENTRE (MM) |
ADMIT BETWEEN VOLUME OF CASE M3 |
| NET |
GROSS |
| EH-1 |
2000 X 1600 |
1400 |
1650 |
2400 X 1350 X 1650 |
5.30 |
| EH-2 |
2440 X 1600 |
1625 |
1900 |
2900 X 1350 X 1650 |
6.50 |
| EH-3 |
3000 X 1600 |
1700 |
2250 |
3400 X 1350 X 1650 |
7.60 |
| EH-4 |
3450 X 1600 |
1900 |
2250 |
3600 X 1350 X 1650 |
8.00 |
| EH-5 |
115 X 1600 |
2100 |
2650 |
4300 X 1350 X 1650 |
9.60 |
| EH-6 |
4825 X 1600 |
2450 |
3100 |
4900 X 1350 X 1650 |
10.90 |
| BED FT |
MODEL NO |
ADMIT BETWEEN CENTRE |
| FT |
|
| 5'- 6" |
1675 |
EH-1 |
500 MM |
| 7'-0" |
2135 |
EH-2 |
1000 MM |
| 9'-0" |
2740 |
EH-3 |
1600 MM |
| 10'-0" |
3050 |
EH-4 |
1915 MM |
| 12'-0" |
3650 |
EH-5 |
2525 MM |
| 14'-0" |
4260 |
EH-6 |
3135 MM |
