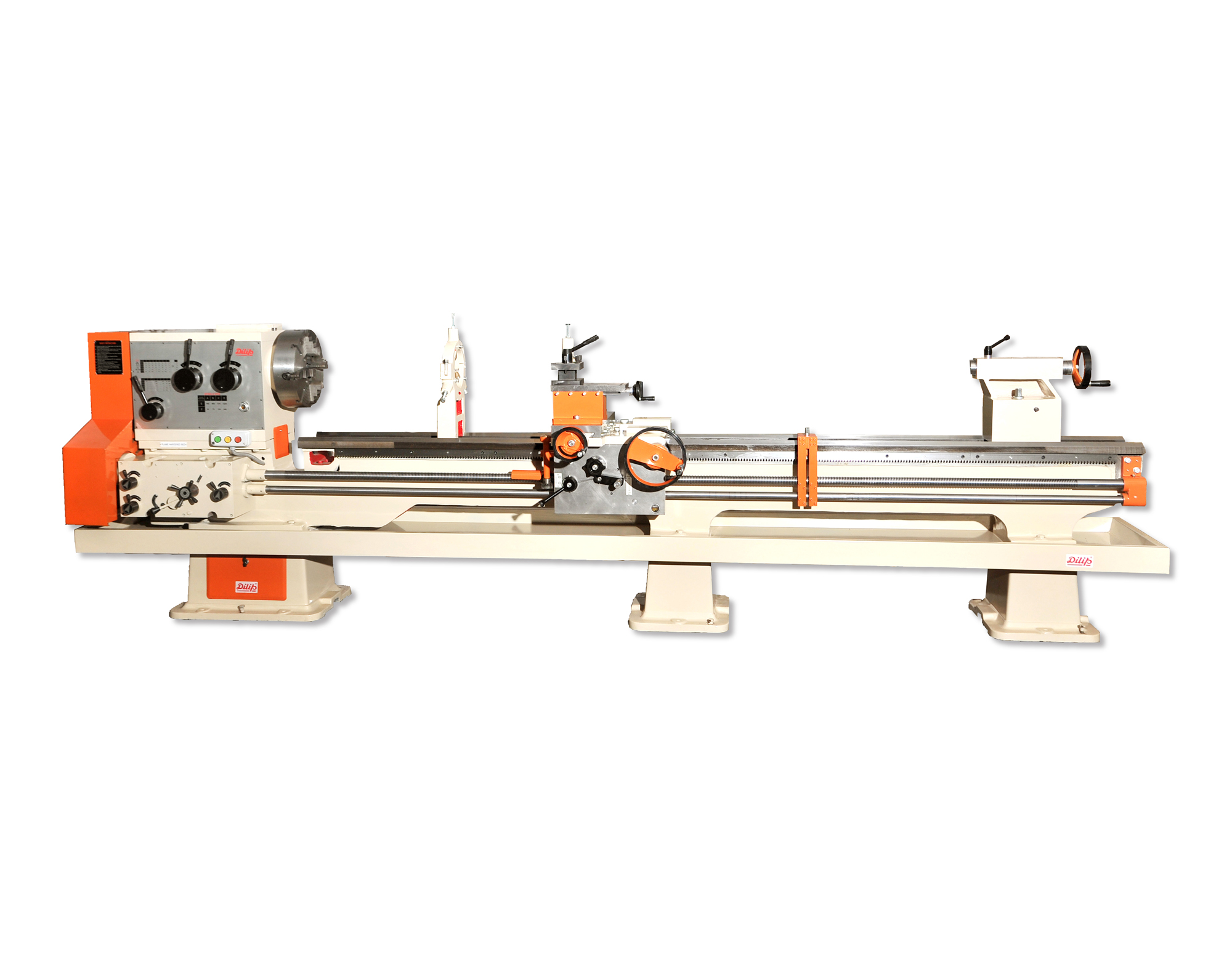

Heavy Duty Lathe Machine - EHG Series
  • Flame Hardened Bed
  • Norton Gear Box with Feed Shaft
  • Electricals Complete
  • Electric Panel Board
  • Chuck Plate
  • Teady & Follow Rest
  • Spindle Sleeve
  • Dead Centres
  • Centre Adaptor
  • Oil Can
  • Spanner Set
  • Tool Post Key
  • Spare parts & Instruction Book
  • Hardened & profile ground gears & spline shafts for long-life & noise – less operation.
  • Easy speed selection & gear changing.
  • Full Norton gearbox enabling to cut any type of threads.
  • Induction hardened A28 type spindle with proven make Taper Roller Bearings.
  • Independent feed shaft minimizing wear & tear of lead-screw.
  • Electromagnetic brake with foot pedal (optional).
  • Readily available & completely interchangeable spare-parts.
  • Extra Height of Centre 375 mm in Lieu of Std. 330 mm
  • Taper Turning Attachment
  • Rear Tool Post with Long Slide
  • True Chuck / Dog Chuck
  • Coolant Pump with Tank & Adj. Nozzle
  • Splash Guard
  • Quick Change Tool Post
  • Machine Lamp
  • Revolving Centre
  • Face Plate
  • Turcite - B Coating Guideways
  • Electro Magnetic Brake with Foot Pedal
SPECIFICATIONS : EHG - 1 EHG - 2 EHG - 3 EHG - 4 EHG - 5
Length of Bed 7’-0” (2135MM) 9’-0” (2740MM) 10’-0” (3050MM) 12’-0” (3660MM) 14’-0” (4260MM)
Distance Between Centre 970 MM 1570 MM 1880 MM 2500 MM 3100 MM
Height of Centre over Flat Bed ways 330 MM 330 MM 330 MM 330 MM 330 MM
Swing over Bed 620 MM 620 MM 620 MM 620 MM 620 MM
Swing over Cross Slide 420 MM 420 MM 420 MM 420 MM 420 MM
Width of Bed 375 MM 375 MM 375 MM 375 MM 375 MM
Bed Type 2V & 2 FLAT 2V & 2 FLAT 2V & 2 FLAT 2V & 2 FLAT 2V & 2 FLAT
HEAD STOCK
Spindle Nose A28
Spindle Bore 80 MM
No. of Spindle Speed 8
Range of Spindle Speed 25 - 835 RPM
Spindle Morse Taper MT-6
TAIL STOCK
Quill Dia. 75 MM
Quill Morse Taper MT-5
Quill Travel 180 MM
CARRIAGE & COMPOUND
Cross Slide Dimensions 200 x 200 x 460
Cross Slide Travel 250 MM
Top Slide (Compound Slide) Travel 140 MM
Top Shank Section 25 x 25 MM
LEAD SCREW
Lead Screw Diameter 38 MM
Lead Screw Threads 4 TPI
No. of Threads Range in Metric 13
No. of Threads Range in Inch 19
Pitch Range in Metric 1 to 6 TPI
Pitch Range in Inch 2 to 24 TPI
ELECTRICAL 5 HP, 1440 RPM
WEIGHT & DIMENSIONS
Floor Space Occupied 2440 X 1600 3000 X 1600 3450 X 1600 4115 X 1600 4825 X 1600
Approx. Wt. (Kg.) Net 1750 1900 2100 2300 2650
Gross 2050 2200 2400 2650 3100
Approx. Size of Case (MM) 2900 X 1350 X 1650 3400 X 1350 X 1650 3600 X 1350 X 1650 4300 X 1350 X 1650 4900 X 1350 X 1650
Volume of Case (M3) 6.50 7.60 8.00 9.60 10.90
