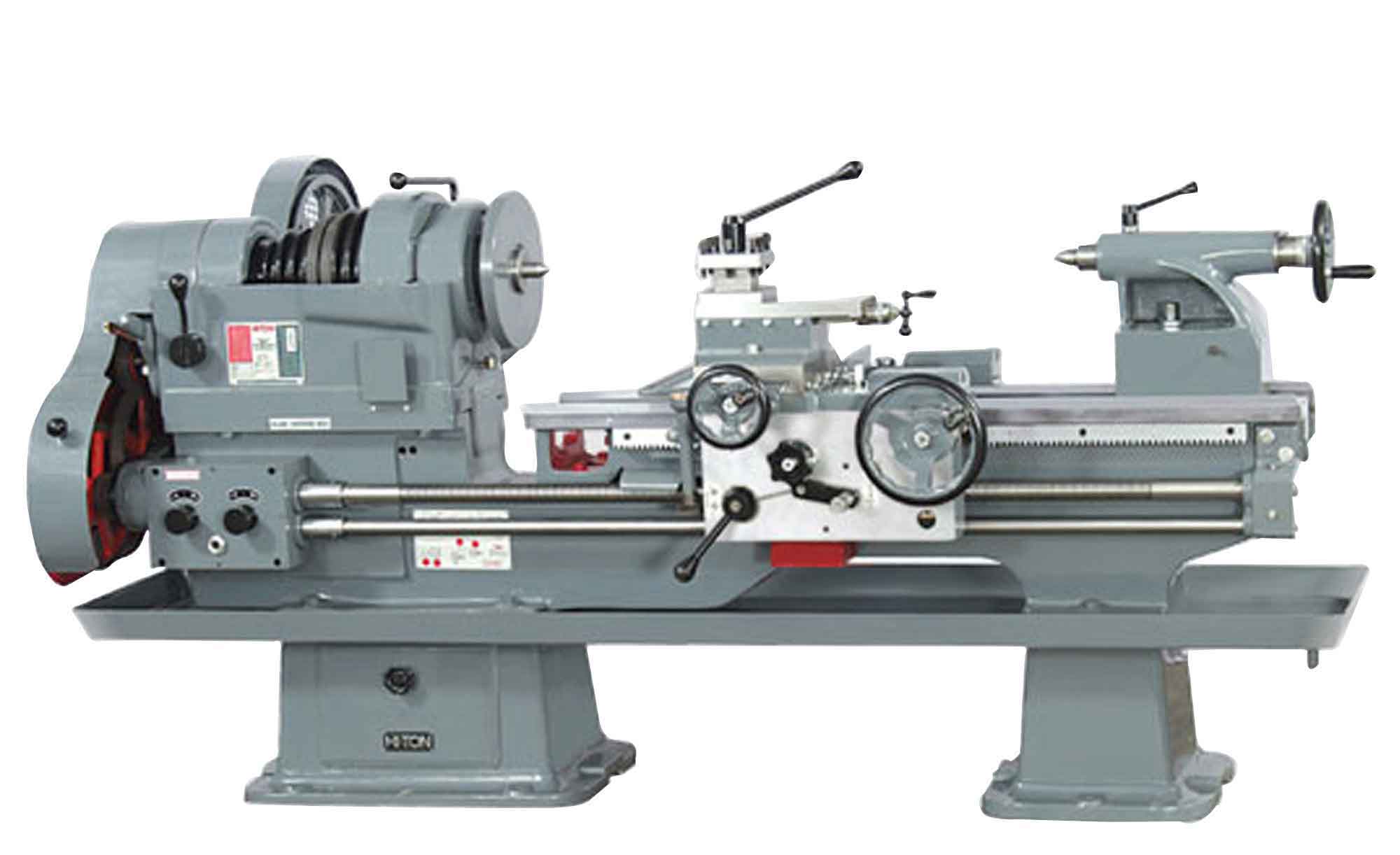

- Flame Hardened & Ground Bed
- Chuck Plate
- Face Plate
- Motor Pulley
- Tool Post Key
- Dead Centers MT-4
- Spindle Sleeve
- Set of Change Gears (Inch & Metric Threads)
- Steady Rest
- Follow Rest
- Nylon Flat Belt
- Oil Can
- Spare Parts & Instruction Manual
- Head Stock Gear Helical
- Main Spindle & Tailstock Spindle hardened & ground
- Head Stock / Counter pulley dynamically balanced
- Hardened and Ground Bed for minimum wear
- Apron is fully oil bath
- Steel parts made from EN-8 steel
- Needs minimum care and low maintenance
- Tested as Per IS: 1878 - 1971
- All components machined using jigs and fixtures to close to tolerances, thus providing easy interchangeability
- Taper Turning Attachment (For Model : HT-1, 2, 3, 4 Only)
- Norton Gear Box
- 4 Speed Semi Norton Gear Box with Feed Shaft
- Extra Height of Centre (12")
- Spindle Bore : Dia. 75mm or 100mm
- Coolant Pump with Tank & Adjustable Nozzles
- Splash Guard
- Turcite - B Coating Guideway
- Quick Change Tool Post
- Revolving / Pipe Centre
- Electric Motor
- Through / Dog Chuck
- Carrier Plate
- Hydraulic Copy Turning Attachment
| SPECIFICATION |
MODELS
|
| STANDARD HEAVY DUTY254MM CENTRE |
OPTIONAL HEAVY DUTY 305MM CENTRE |
| Height of Centre Over Flat Bed Ways |
254 mm |
305 mm |
| Swing Over Bed |
480 mm |
580 mm |
| Swing Over Cross Slide |
290 mm |
395 mm |
| Swing in Gap |
785 mm |
885 mm |
| Length of Gap in Front of Face Plate |
190 mm |
190 mm |
| Width of Bed |
325 mm |
325 mm |
| Bed Type |
2V & 2 FLAT |
2V & 2 FLAT |
| HEAD STOCK OR MAIN SPINDLE |
| Spindle Nose Dia. / Thread |
76 x 6 TPI |
76 x 6 TPI |
| Spindle Bore |
52 mm |
52 mm |
| No. of Spindle Speeds |
8 |
8 |
| Range of Spindle Speed |
| (Standard) Brass Type |
30 to 550 RPM |
30 to 550 RPM |
| (Optional) Bearing Type |
40 to 700 RPM |
40 to 700 RPM |
| Morse Taper in Spindle |
MT-6 |
MT-6 |
| Morse Taper in Adaptor |
MT-4 |
MT-4 |
| Type of Drive (Standard) |
Flat Belt |
Flat Belt |
| (Optional) V-Belt |
"C" Section |
"C" Section |
| TAIL STOCK |
| Spindle Dia. |
62 mm |
62 mm |
| Spindle Morse Taper |
MT-4 |
MT-4 |
| Spindle Travel |
180 mm |
180 mm |
| CAARIAGE & COMPOUND |
| Cross Slide Dimensions |
200 x 460 mm |
200 x 460 mm |
| Cross Slide Travel |
250 mm |
350 mm |
| Top Slide (Compound Slide) Travel |
140 mm |
140 mm |
| Tool Shank Section |
25 mm |
25 mm |
| LEAD SCREW |
| Lead Screw Diameter |
38 mm |
38 mm |
| Lead Screw Threads |
4 TPI |
4 TPI |
| THREADS |
| Number of Threads Range in Metric |
13 |
13 |
| Number of Threads Range in Inch |
19 |
19 |
| Number of Pitch Range in Metric |
1 to 6 PITCH |
1 to 6 PITCH |
| Number of Pitch Range in Inch |
2 to 24 TPI |
2 to 24 TPI |
| Electrical |
3 HP 1440 RPM |
3 HP 1440 RPM |
| V-Belt Section |
B73 |
B73 |
MISCELLANEOUS DIMESIONS
| MODEL |
FLOOR SPACE
OCCUPIED |
APPROX WT.(KG) GROSS |
ADMIT BETWEENCENTRE (MM) |
ADMIT BETWEEN VOLUME OF CASE M3 |
| NET |
GROSS |
| HT-1 |
2000 X 1450 |
1150 |
1400 |
2300 X 1105 X 1370 |
4.00 |
| HT-2 |
2440 X 1450 |
1250 |
1500 |
2740 X 1105 X 1370 |
4.15 |
| HT-3 |
3000 X 1450 |
1400 |
1700 |
3200 X 1105 X 1370 |
4.84 |
| HT-4 |
3450 X 1450 |
1550 |
1900 |
3700 X 1105 X 1370 |
5.65 |
| HT-5 |
4115 X 1450 |
1700 |
2100 |
4370 X 1105 X 1370 |
6.62 |
| HT-6 |
4825 X 1450 |
1900 |
2270 |
5080 X 1105 X 1370 |
7.61 |
| BED FT |
LENGTH MM |
MODEL NO |
ADMIT BETWEEN CENTRE |
| 5'- 6" |
1675 |
HT-1 |
500 MM |
| 7'-0" |
2135 |
HT-2 |
1000 MM |
| 9'-0" |
2740 |
HT-3 |
1600 MM |
| 10'-0" |
3050 |
HT-4 |
1915 MM |
| 12'-0" |
3650 |
HT-5 |
2525 MM |
| 14'-0" |
4260 |
HT-6 |
3135 MM |
